More than just a steam station, Modbar Steam delivers a minimal, modern aesthetic coupled with power and control. Give your customers a full view of their drink being prepared, from espresso pull to rosetta.

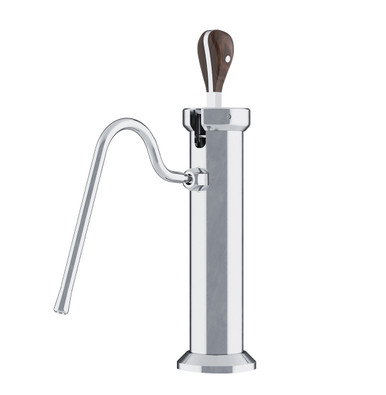

- Double-wall pro touch stainless steel wand to prevent burns
- Ergonomic handle designed to match Espresso AV
- Two steam tips included
- Simple on/off switch controlled by solenoid in the module
- Minimal purge required with no steam valve rebuilds
- Omni-directional ball fitting for ambidextrous use
- Right-hand side connections for easy service access
SPECIFICATIONS:

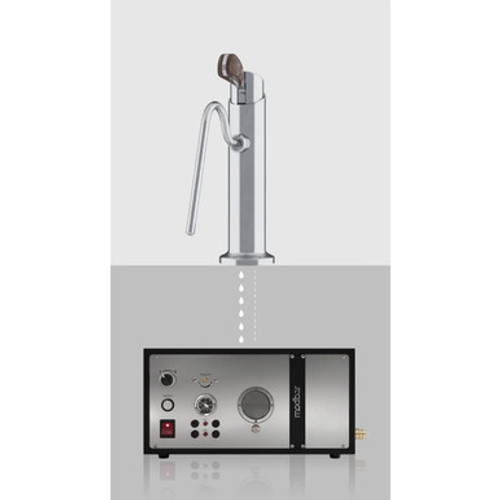

- Dimensions: TAP: 3.5 x 12.6 x 13.5 in, MOD: 16 x 14 x 8.6 in
- Weight: TAP: 7.7 lbs, MOD: 40 lbs
- Capacity: 4.61 total (Steam boiler)
- Electrical: 208V - 240V
- Amps: 14.4A (ETL) / 13A (CE)
- Element Wattage: 3310W (ETL) / 2705W (CE)
- Frequency: 50/60hz
- Phase: Single
- Certifications: UL, CE

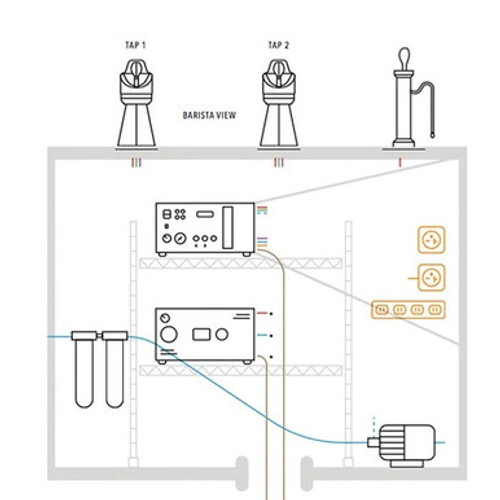

- Pre-Installation Specifications
- Includes two different steam tips and one 190 x 260mm flanged drain tray
- Water filter required (sold separately)
- Options: one or two taps
